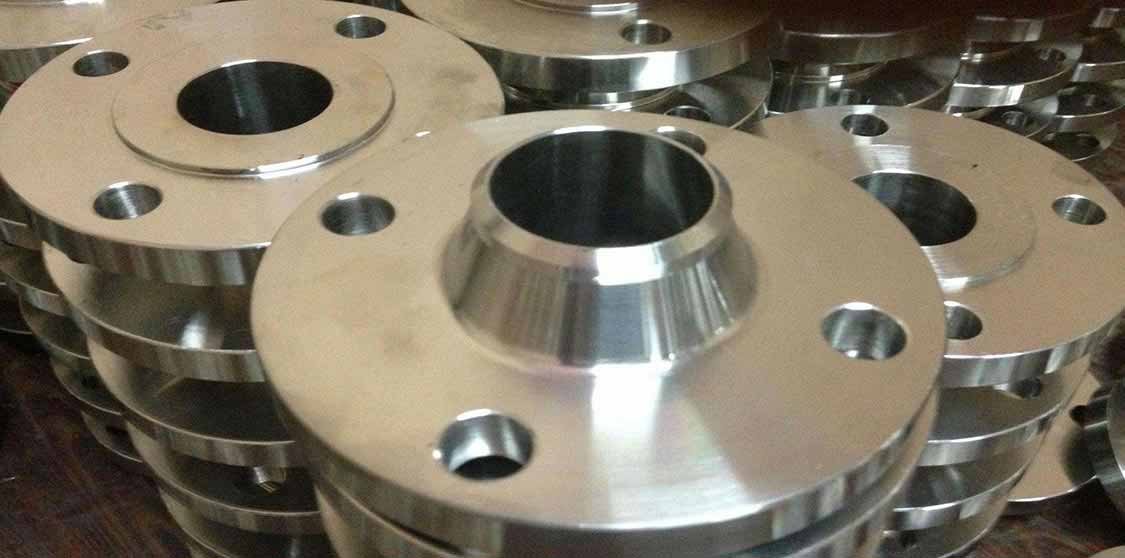

SS 317/317L Flanges are made from stainless steel alloy in addition to molybdenum, nickel and chromium content. These flanges have outstanding creep and tensile strength at the high-temperature circumstance. Furthermore, it has excellent corrosion resistance and stress to rupture in a harsh environment. The flanges comprise superior formability and fabricability. Hence for its good functionality, these are hot or cold worked. Evermore these get unaffected during thermal or welding procedures. Therefore the flanges are non-magnetic in annealed circumstance whereas exhibits magnetic features during welding.
With the procurement of standard raw material and advanced technology, Max Steels are fairly engaged in manufacturing and exporting the flanges at a global standard. We have the dedicated workforce and qualified professionals that are actively immersed in obtaining the top-notch quality of the product. All our production process is properly done under the guidelines and regulations of the industrial standards. In respect to the national and international standard, we provide our product in a wide array of shapes, sizes, length according to the patrons mention demand or constraints. Also, we provide our standard quality product at quite a reasonable price.
Testing details - Test such as hardness test, corrosion resistance test, toughness test, tensile strength test, third-party inspection, chemical analysis, PMI test, mechanical analysis and many more. This entire test is done to check the quality of the product.
Packaging details - In order to deliver the product safely and securely, these are fully wrapped with packaging material. The products are packed in wooden cartons/cases/boxes or in plastic bubble wrapping.
One can purchase the quality SS 317/317L Flanges from Max Steels.
STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
SS 317 | 1.4449 | S31700 | SUS 317 | - |
SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Specifications : ASTM A182 / ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, Flate Face flanges, ASME B16.5 flanges.
ASTM A182 / SA182M - This specification covers forged low alloy and stainless steel piping components for use in pressure systems.
ANSI B16.5 - standard covers alloy Pipe Flanges and Flanged Fittings from NPS 1/2 through NPS 24 Metric/Inch in pressure class 150 to class 2500.
ANSI/ASME B16.47 - Term B16.47 or B 16 47 or ANSI B 16 47 are all used interchangeabily and refers to the same standard. ASME B16.47(Large Diameter Steel Flanges) is a standard for large diameter steel pipe flanges sized from NPS 26 through NPS 60.
ANSI B16.48 - Standard covers pressure–temperature ratings, materials, dimensions, tolerances, marking, and testing for operating line blanks in sizes NPS 1⁄2 through NPS 24 for installation between ASME B16.5 flanges in the 150, 300, 600, 900, 1500, and 2500 pressure classes.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.845 min |
SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.89 min |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Corrosion resistant
Durable functioning
Malleable
Heat resistance
High strength
Excellent conductivity
Impeccable finish
Enhanced service life
Precisely designed
