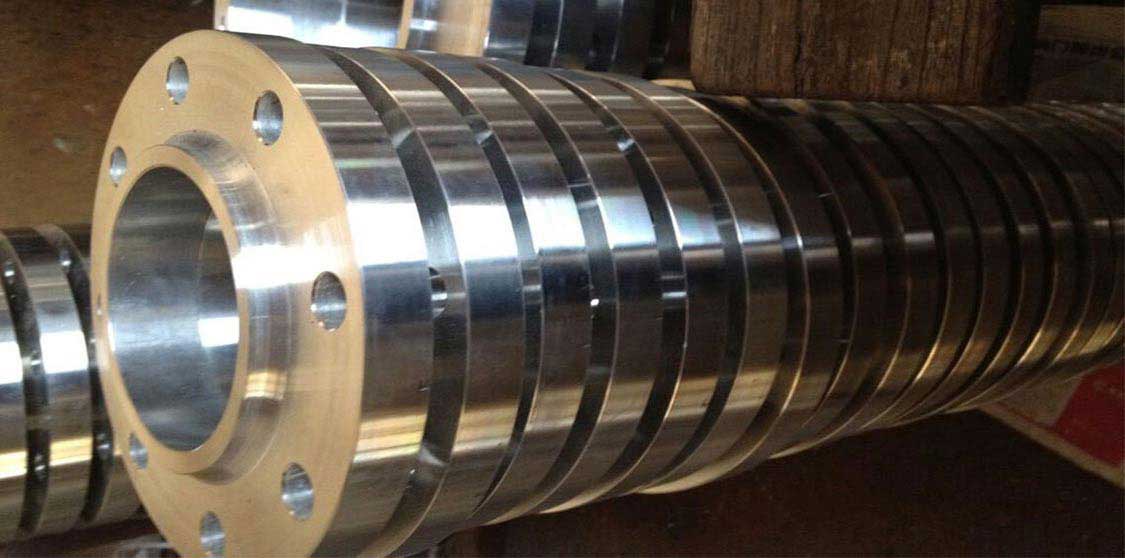

SS 316 / 316L Flanges is really the most demanded product that is well known for corrosion resistance, crevice corrosion, pitting resistance. Also, the high durability, longevity, flexibility, good dimensional accuracy, sturdy construction, stainless steel flange dimensions with fine finishes are making it high in demand. Max steels are one that dealing as a producer and supplier are offering excellent quality of a comprehensive range of SS flanges. Also, they are offering good quality of value-added and sale after services. Also, they believe in delivering better client specific engagements. The product to the global patrons is provided at reasonable rates only.
If we talk about the production of uns s31603 stainless steel, it is done by using good quality of alloy that is sourced from reputable market vendors of stainless 300 series stockist. The production is done by effectively making use of the latest technology, modern machinery and considering raw material standard qualities. Without the help of professional team as well as quality control team, it won’t have been possible that they could have offered a better quality of the product.
In order to make sure to self that they are offering good quality of product to the buyers, various testing is performed also to check the stainless steel 316l melting point. Thus, the poor quality of the product is separated from the good ansi 316 stainless steel. The test conducted are PMI test, pitting resistance test, hardness test, IGC test, macro test, chemical test, flaring test, micro test, mechanical test and flattening test.
The packaging of the product is done by making effective use of standard packaging techniques. It is packed in wooden cases/pallets, carton boxes, shrink-wrapping etc. This is giving full safety to the shipped product.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Specifications : ASTM A182 / ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, Flate Face flanges, ASME B16.5 flanges.
ASTM A182 / SA182M - This specification covers forged low alloy and stainless steel piping components for use in pressure systems.
ANSI B16.5 - standard covers alloy Pipe Flanges and Flanged Fittings from NPS 1/2 through NPS 24 Metric/Inch in pressure class 150 to class 2500.
ANSI/ASME B16.47 - Term B16.47 or B 16 47 or ANSI B 16 47 are all used interchangeabily and refers to the same standard. ASME B16.47(Large Diameter Steel Flanges) is a standard for large diameter steel pipe flanges sized from NPS 26 through NPS 60.
ANSI B16.48 - Standard covers pressure–temperature ratings, materials, dimensions, tolerances, marking, and testing for operating line blanks in sizes NPS 1⁄2 through NPS 24 for installation between ASME B16.5 flanges in the 150, 300, 600, 900, 1500, and 2500 pressure classes.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Corrosion resistant
Durable functioning
Malleable
Heat resistance
High strength
Excellent conductivity
Impeccable finish
Enhanced service life
Precisely designed
