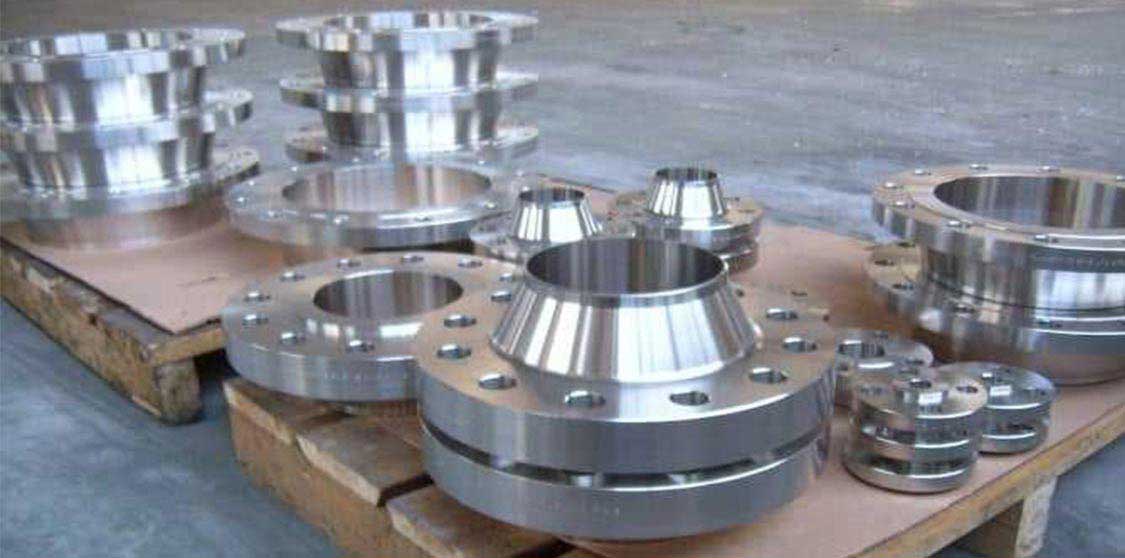

Max Steels is a manufacturer and supplier of stunning quality SS 304 / 304L Flanges made of superior raw materials. The production is done with full care to satisfy all application demands. Advanced technology and modern tools are greatly responsible for making products of good quality. The professional team that the industry has hired is contributing to offering the best possible quality of flanges. Also, with the help of the quality control team during flanges production, quality is maintained well. The ASTM A182 Stainless Steel 304/304L Flanges to the buyer are supplied at different specifications and reasonable prices.
Due to its effectiveness in producing the flanges, the product has various good attributes. Those are high tensile strength, pitting resistance, rugged construction, durability, crevice corrosion resistance, flexibility, withstanding heavy loads, holding high temperatures, stress corrosion cracking resistance, etc.
The industry mandatorily conducts a number of effective tests to check the quality of the product, assuring the industry that the product is free from faults. Here, we conduct the PMI test, IGC test, flattening/flaring test, hardness test, mechanical/chemical test, micro/macro test, and pitting resistance test.
When the product is made ready to be supplied, several important documents are provided along with it. The documents are strong proof that assures buyers that the high-quality product produced is supplied to them. Documents include QAP, packaging list, commercial invoice, raw material test report, guarantee letter, material traceability report, etc.
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
Specifications : ASTM A182 / ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, Flate Face flanges, ASME B16.5 flanges.
ASTM A182 / SA182M - This specification covers forged low alloy and stainless steel piping components for use in pressure systems.
ANSI B16.5 - standard covers alloy Pipe Flanges and Flanged Fittings from NPS 1/2 through NPS 24 Metric/Inch in pressure class 150 to class 2500.
ANSI/ASME B16.47 - Term B16.47 or B 16 47 or ANSI B 16 47 are all used interchangeabily and refers to the same standard. ASME B16.47(Large Diameter Steel Flanges) is a standard for large diameter steel pipe flanges sized from NPS 26 through NPS 60.
ANSI B16.48 - Standard covers pressure–temperature ratings, materials, dimensions, tolerances, marking, and testing for operating line blanks in sizes NPS 1⁄2 through NPS 24 for installation between ASME B16.5 flanges in the 150, 300, 600, 900, 1500, and 2500 pressure classes.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 11 | - |
SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 13 | - |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Corrosion resistant
Durable functioning
Malleable
Heat resistance
High strength
Excellent conductivity
Impeccable finish
Enhanced service life
Precisely designed
