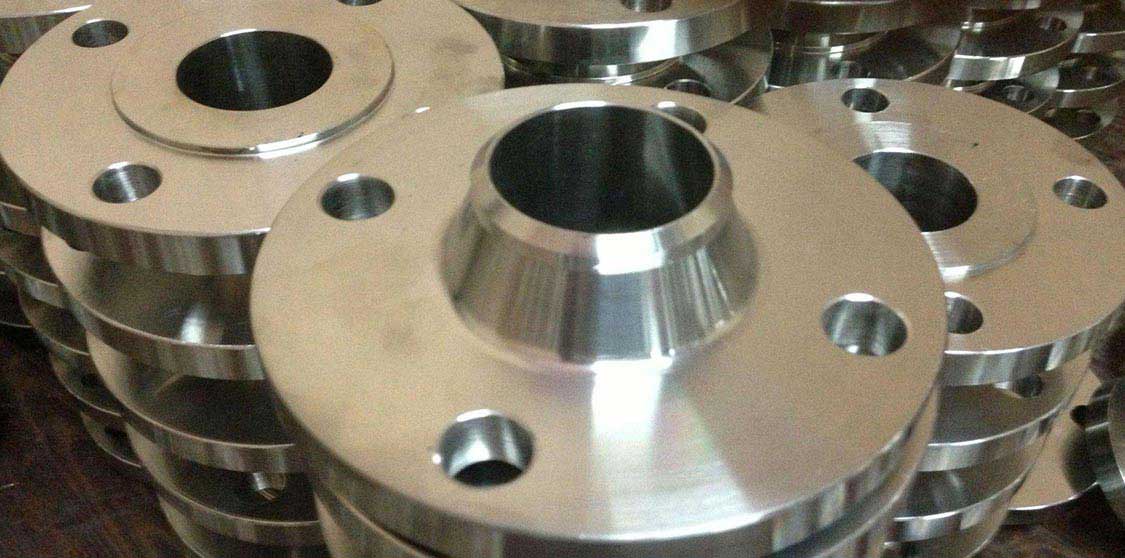

Alloy Steel F9 Flanges

UNS K90941 Flanges, DIN 1.7386 Flange, ANSI B16.5 Alloy Steel F9 Flanges, ASTM A182 Alloy Steel F9 Flanges, Alloy Steel F9 Flanges Manufacturers in India

Alloy Steel F9 SWRF Flanges, Alloy Steel F9 SORF Flanges, Alloy Steel F9 Socket Weld Flanges, Global Exporter of Alloy Steel F9 Flanges, F9 Alloy Steel RTJ Flanges in India.

Max steels offer unique alloy steel F9 flanges that are engineered with durable piping technology. This premium quality steel flanges contribute immensely to business growth. Max Steels provides products based on the selection of the clients, this enables them to select the right and best product for the purpose. Steel flanges are supplied from dispatching units in various thickness, sizes, specifications, grades, length, finish, and forms. That’s why alloy steel threaded flanges may include both customizable and conventional flanges types.

Max steels provide F9 flanges these can work well in elevated temperatures. Since the size could be as precise as possible it fits perfectly in any space. You can place an order with different sizes, flange face types, standards, dimensions, specifications, and class/ pressure.

Alloy Steel F9 Flanges

The composition of Chrome Molybdenum alloy steel F9 flanges is silicon, molybdenum, phosphorus, sulfur, manganese, carbon and chromium. Once, you order the alloy steel flanges, it gets delivered directly to your doorsteps. You are free to choose broader steel flange ranges for industrial purpose.

ANSI/ASME 16.5 Alloy Steel F9 Forged flanges

WERKSTOFF NR. 1.7386 Spectacle blind flange

Alloy F9 Welding neck flange

Alloy Steel F9 Socket weld flange

UNS K90941 Ring type joint flange

Alloy Steel F9 Slip on flanges

ASTM A182 Alloy Steel F9 Blind flanges

Alloy Steel F9 Plate flange

UNS K90941 Long weld neck flange

Alloy Steel F9 Threaded flange

Alloy Steel F9 Flate Face flange

Alloy Steel F9 Tongue and Groove flange

Alloy Steel F9 Screwed flange

DIN 1.7386 Reducing flange

Equivalent Grades
STANDARD UNS WERKSTOFF NR.
Alloy Steel F9 K90941 1.7386
 Specification

Specifications : ASTM A182 / ASME SA182

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2" (15 NB) to 48" (1200NB)

Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, Flate Face flanges, ASME B16.5 flanges.


Standard Specification

ASTM A182 / SA182M - This specification covers forged low alloy and steel piping components for use in pressure systems.

ANSI B16.5 - standard covers alloy Pipe Flanges and Flanged Fittings from NPS 1/2 through NPS 24 Metric/Inch in pressure class 150 to class 2500.

ANSI/ASME B16.47 - Term B16.47 or B 16 47 or ANSI B 16 47 are all used interchangeabily and refers to the same standard. ASME B16.47(Large Diameter Steel Flanges) is a standard for large diameter steel pipe flanges sized from NPS 26 through NPS 60.

ANSI B16.48 - Standard covers pressure–temperature ratings, materials, dimensions, tolerances, marking, and testing for operating line blanks in sizes NPS 1⁄2 through NPS 24 for installation between ASME B16.5 flanges in the 150, 300, 600, 900, 1500, and 2500 pressure classes.

ASTM A182
ASME SA182
ANSI B16.5
ASME B16.5
Chemical Properties
Grade C Mn P S Si Ni Ch Mo Cb
F9 0.15 0.30-0.60 0.030 0.030 0.50-1.00 - 8.0-10.0 0.90-1.10 -
 Mechanical Properties
Grade

Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
F9 585 380 20 - 179-217
Applications
  • Flanges in Chemical Plants
  • Flanges for Gas & Water Pipe Line
  • Industrial Machineries
  • Petroleum Refining — recuperators, catalytic recovery systems
  • Power Generation — pulverized coal burners
  • Thermal, Nuclear and Solar Power Plants
  • Petrochemicals and Refineries
  • Oil & Gas Exploration
Features

Corrosion resistant
Durable functioning
Malleable
Heat resistance
High strength
Excellent conductivity
Impeccable finish
Enhanced service life
Precisely designed
