Alloy Steel F11 Flanges

Alloy Steel F11 Flanges Manufacturers in India, Alloy F11 Flanges, ASTM A182 Alloy Steel F11 Flanges, UNS K11572 Flanges, UNS K11597 Flanges, DIN 1.7335 Flange, ANSI B16.5 Alloy Steel F11 Flanges, WERKSTOFF NR. 1.7335 Flanges, Alloy Steel F11 Flanges Supplier in Mumbai, India.

Alloy Steel F11 SORF Flanges, Alloy Steel F11 Pipe Flanges Stockist, Alloy Steel F11 Slip On Flange, F11 Alloy Steel RTJ Flanges in India, Global Exporter of Alloy Steel F11 Flanges, Alloy Steel F11 WNRF Flange, Alloy Steel F11 Socket Weld Flanges, Alloy Steel F11 SWRF Flanges, Alloy Steel F11 Flanges Exporter in India

Max steels are legally certified industry that is a highly acclaimed manufacturer, stockiest, the supplier of the high quality of Alloy Steel F11 Flanges. The production of the product is done in such a way that it assures to be highly durable, flexible, and long-lasting. The industry is proactive in fulfilling all the desires of buyers in supplying superior quality of product and in different specifications. The offered product range varies in sizes, shapes, grades, dimension so all application specific requirements can be easily satisfied. The effective fabrication wouldn’t have been possible if the professional team and quality control team are not hired. Additionally, the latest technology, modern tools, and raw material quality standards have improvised product quality.

The properties that are making product high in demand are many that have become possible because of the addition of an element in the proper amount. It includes good dimensional accuracy, fine surface finishes, durability, flexibility, high tensile strength, sturdiness, long-lasting, withstanding heavy loads. Also, resistance to corrosion, pitting, oxidation, stress corrosion cracking, crevice corrosion resistance, the ability to hold high temperature is making it good for different purposes.

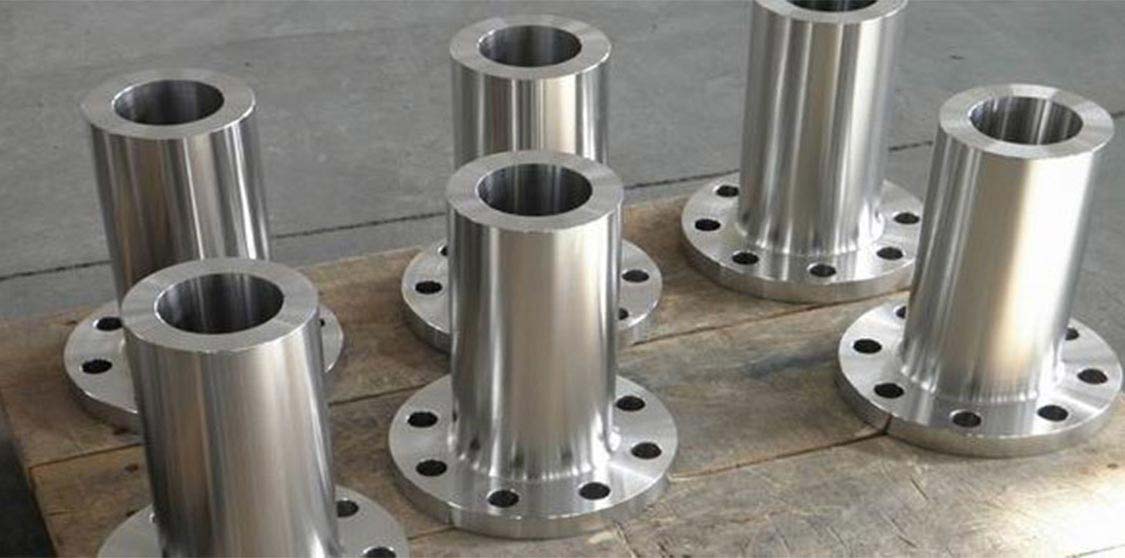

Alloy Steel F11 Flanges

The testing like hardness test, flattening/flaring test, PMI/IGC test, macro/micro test, chemical/mechanical test, pitting resistance test are performed to check the quality of the product. The testing is done by the expert and by using the advanced tools.

Delivering of the flanges by the suppliers assured to be done well on time. This has become possible because of faster transportation means and logistics partners. They are always ready to undertake all type of shipping and are promising to ship the product on time and without causing any harm.

Alloy Steel F11 Socket weld flange

UNS K11597 Ring type joint flange

Alloy Steel F11 Slip on flanges

ASTM A182 Alloy Steel F11 Blind flanges

ANSI/ASME 16.5 Alloy Steel F11 Forged flanges

WERKSTOFF NR. 1.7335 Spectacle blind flange

Alloy F11 Welding neck flange

Alloy Steel F11 Flate Face flange

Alloy Steel F11 Tongue and Groove flange

Alloy Steel F11 Screwed flange

DIN 1.7335 Reducing flange

Alloy Steel F11 Plate flange

UNS K11597 Long weld neck flange

Alloy Steel F11 Threaded flange

Equivalent Grades of ASME SA182 Alloy Steel F11 Flanges
STANDARD UNS WERKSTOFF NR.
Alloy Steel F11 K11597 / K11572 1.7335
Alloy Steel F11 Flanges Specification

Specifications : ASTM A182 / ASME SA182

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2" (15 NB) to 48" (1200NB)

Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, Flate Face flanges, ASME B16.5 flanges.


Standard Specification for Alloy Steel F11 Flanges

ASTM A182 / SA182M - This specification covers forged low alloy and steel piping components for use in pressure systems.

ANSI B16.5 - standard covers alloy Pipe Flanges and Flanged Fittings from NPS 1/2 through NPS 24 Metric/Inch in pressure class 150 to class 2500.

ANSI/ASME B16.47 - Term B16.47 or B 16 47 or ANSI B 16 47 are all used interchangeabily and refers to the same standard. ASME B16.47(Large Diameter Steel Flanges) is a standard for large diameter steel pipe flanges sized from NPS 26 through NPS 60.

ANSI B16.48 - Standard covers pressure–temperature ratings, materials, dimensions, tolerances, marking, and testing for operating line blanks in sizes NPS 1⁄2 through NPS 24 for installation between ASME B16.5 flanges in the 150, 300, 600, 900, 1500, and 2500 pressure classes.

ASTM A182
ASME SA182
ANSI B16.5
ASME B16.5
Alloy Steel F11 Flanges Chemical Properties
Grade C Mn P S Si Ni Ch Mo Cb
F11 0.15 0.30-0.60 0.030 0.030 0.50-1.00 - 1.00-1.50 0.44-0.65 -
Alloy Steel F11 Flanges Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
F11 415 205 20 - 121-174
Applications
  • Flanges in Chemical Plants
  • Flanges for Gas & Water Pipe Line
  • Industrial Machineries
  • Petroleum Refining — recuperators, catalytic recovery systems
  • Power Generation — pulverized coal burners
  • Thermal, Nuclear and Solar Power Plants
  • Petrochemicals and Refineries
  • Oil & Gas Exploration
Features

Corrosion resistant
Durable functioning
Malleable
Heat resistance
High strength
Excellent conductivity
Impeccable finish
Enhanced service life
Precisely designed
