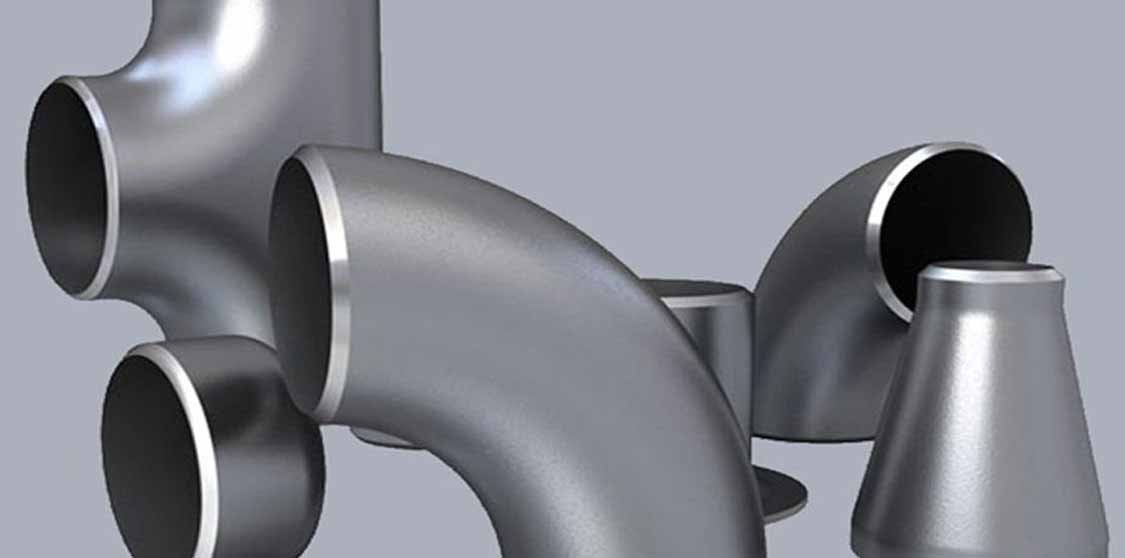

Max Steels is considered one of the renowned companies in the global market today. The main reason behind it is the high quality of product supply, offering excellent quality of sales after and value-added services. We provide an extensive range of products that are fabricated using superior-quality stainless steel alloy. Today, SS 347/347H Pipe Fittings are used widely in various applications. The product can be availed as per the requirements because it is available in different specifications and at good rates.
With the sincere dedication and hard work of professionals and the quality control team, the product quality has been very well enhanced. This has led the product to bear many good features. Those include good dimensional accuracy, rugged construction, high tensile strength, anti-corrosive, general corrosion resistance, and the ability to withstand high temperature/heavy loads. Also, other features like high durability, flexibility, pitting/oxidation, crevice corrosion resistance, and longevity make it the best choice for many applications.
The industry welcomes inspection on a timely basis to ensure better production of pipe fittings. The inspection is done by a legally certified third-party inspection agency or expert representative to assure a better quality of pipe fittings manufacturing. This helps the producers produce a better quality product without any defects.
The industry conducts testing primarily to ensure the provision of high-quality products. Defective products are segregated, and only superior-quality pipe fittings are supplied. The tests include hardness, pitting resistance, PMI/IGC, and mechanical/chemical tests.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | X6CrNiTi18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | X12CrNiTi18-9 |
Specifications : ASTM A403 / ASME SA403
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
ASME B16.9 - The ASME B16.9 specification covers the dimensions and the tolerances of stainless and alloy butt weld fittings.
ASME B16.28 - ASME B16.28 Standard covers ratings, overall dimensions, testing, tolerances, and markings for wrought carbon and alloy steel buttwelding short radius elbows and returns.
MSS-SP-43 - This Standard Practice covers only fittings made for use with Schedule 5S or 10S pipe, for all NPS sizes listed in ASME B36.19M, except that for short pattern stub ends suitable for use with Schedule 40S are also shown.
ASTM A403 - This specification covers the standard for wrought austenitic stainless steel fittings for pressure piping applications.
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 - 12.00 | 5(C+N) – 0.70 max |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 - 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Corrosion resistant
Durable functioning
Malleable
Heat resistance
High strength
Excellent conductivity
Impeccable finish
Enhanced service life
Precisely designed
