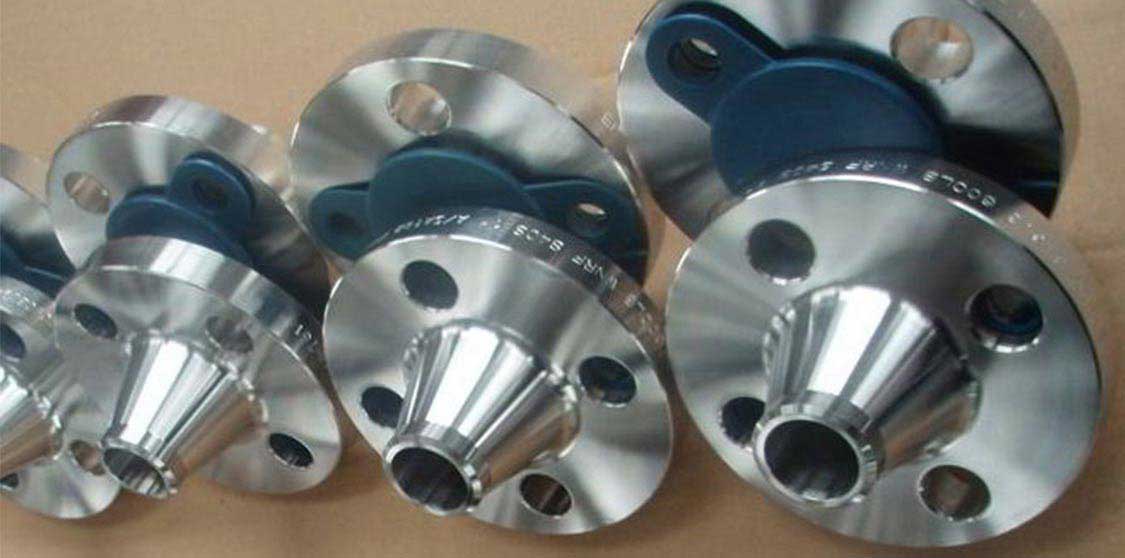

SMO 254 flanges are available to satisfy industrial demand with their quality features. The product can be easily obtained at industry-leading rates. The flanges are made using a good quality alloy sourced from reliable market vendors. Moreover, the product is made with modern machinery technologies that make it very popular. These industrial flanges can be customized if buyers have such requirements. Also, these grade flanges meet global raw material quality standards and have become highly in demand in the market.
The qualities that make it high in demand are tensile strength, flexibility, durability, rugged construction, dimensional accuracy, fine surface finishes, low maintenance, etc. Additionally, the product is manufactured using superior-quality alloy and tends to become highly resistant to corrosion, stress corrosion, cracking, and crevice corrosion.
The industry tests are conducted effectively using advanced tools and by experts. PMI tests, IGC tests, hardness tests, flattening/flaring tests, macro/micro tests, chemical/mechanical tests, and pitting resistance tests are conducted.
It is packaged in wooden cases/pallets, carton boxes, shrink-wrapping and bubble wrapping. This 100% guarantees safer, more timely, and faster product shipping.
| STANDARD | UNS | WERKSTOFF NR. | SIS | AFNOR | EN |
| SMO 254 | S31254 | 1.4547 | 2378 | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 |
Specifications : ASTM B403 / ASME SB403
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, Flate Face flanges, ASME B16.5 flanges.
ASTM B403 / SB403M - Standard Specification for Alloy intended for corrosive high temperature service.
ANSI B16.5 - standard covers alloy Pipe Flanges and Flanged Fittings from NPS 1/2 through NPS 24 Metric/Inch in pressure class 150 to class 2500.
ANSI/ASME B16.47 - Term B16.47 or B 16 47 or ANSI B 16 47 are all used interchangeabily and refers to the same standard. ASME B16.47(Large Diameter alloy Flanges) is a standard for large diameter steel and alloy pipe flanges sized from NPS 26 through NPS 60.
ANSI B16.48 - Standard covers pressure–temperature ratings, materials, dimensions, tolerances, marking, and testing for operating line blanks in sizes NPS 1⁄2 through NPS 24 for installation between ASME B16.5 flanges in the 150, 300, 600, 900, 1500, and 2500 pressure classes.
| Grade | C | Mo | Mn | Si | Fe | P | S | Cr | N | Cu | Ni |
| SMO 254 | 0.02 | 6.0 – 6.5 | 1 | 0.8 | - | 0.03 | 0.01 | 19.5 – 20.5 | 0.18 – 0.22 | 0.5 – 1 | 17.5 – 18.5 |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| SMO 254 | 8.0 g/cm3 | 1320-1390 °C | 300 | 650 | 38 % |
Corrosion resistant
Durable functioning
Malleable
Heat resistance
High strength
Excellent conductivity
Impeccable finish
Enhanced service life
Precisely designed
