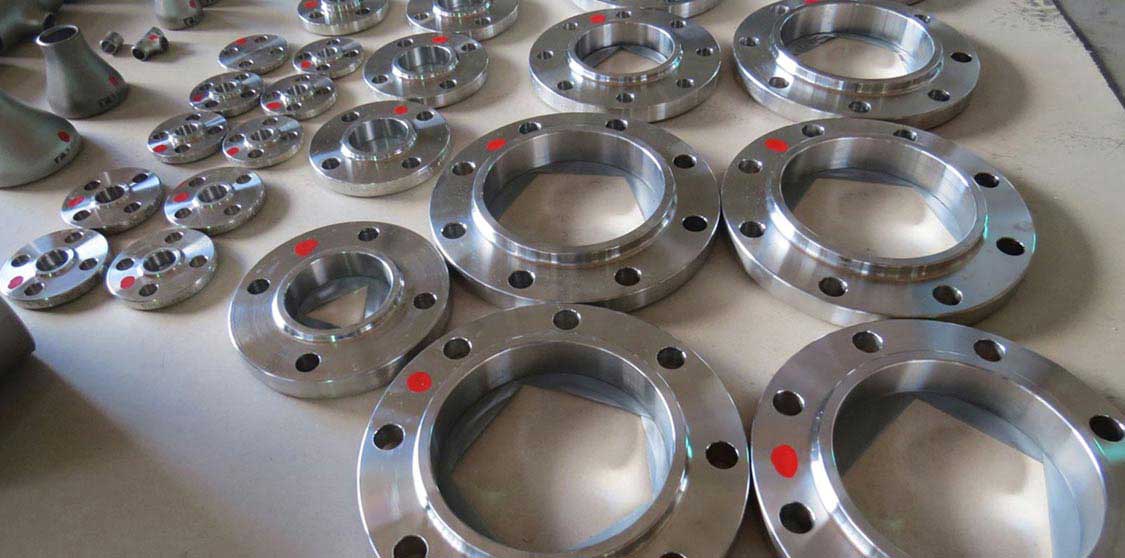

We all know that Incoloy 800 is a chromium and nickel alloy widely used for fabricating Incoloy flanges. Also, grade 800HT/800H is chromium, nickel and iron alloy used for making Incoloy flanges. Today, Incoloy 800 / 800H / 800HT Flanges have become in high demand in the industry because of their various good features. The supplier provides the product to the global buyers as per order needs to be given by the valued patrons to meet all their demands. The flanges are supplied to the buyers at reasonable prices, so buying them is much easier for them.
The product has many good features, and because of this, it is preferred and used in many industries. It has high tensile strength, is ruggedly constructed, durable, flexible, long-lasting, low maintenance, easy to use, and can withstand heavy loads. Other features like stress corrosion cracking resistance, crevice corrosion resistance, pitting resistance, oxidation resistance, and general corrosion resistance allow it to be used widely.
The product manufactured in the industry passes through various tests to ensure the quality of production of flanges is done or not. The tests conducted are hardness test, IGC test, pitting resistance test, PMI test, flattening/flaring test, micro/macro test, chemical analysis and mechanical tests.
The packaging of flanges is done by considering standard techniques or by meeting buyers' demands. The industry packages the flanges in carton boxes, wooden cases, pallets, shrink-wrapping, and bubble wrapping. Thus, the chances of getting damages to the product are nil.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 | NA 15 | ЭИ670 | XH32T |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |
| Incoloy 800HT | N08811 | 1.4959 | - | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 | XH32T |
Specifications : ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, Flate Face flanges, ASME B16.5 flanges.
ASTM B564 / SB564M - specification covers nickel alloy flanges. These alloys are classified into different grades according to their chemical composition.
ANSI B16.5 - standard covers alloy Pipe Flanges and Flanged Fittings from NPS 1/2 through NPS 24 Metric/Inch in pressure class 150 to class 2500.
ANSI/ASME B16.47 - Term B16.47 or B 16 47 or ANSI B 16 47 are all used interchangeabily and refers to the same standard. ASME B16.47(Large Diameter Steel Flanges) is a standard for large diameter steel pipe flanges sized from NPS 26 through NPS 60.
ANSI B16.48 - Standard covers pressure–temperature ratings, materials, dimensions, tolerances, marking, and testing for operating line blanks in sizes NPS 1⁄2 through NPS 24 for installation between ASME B16.5 flanges in the 150, 300, 600, 900, 1500, and 2500 pressure classes.
| Grade | C | Fe | Si | Mn | S | Al | Ti | Cu | Cr | Ni |
| 800 | 0.1 | 39.5 min | 1.0 | 1.5 | 0.015 | 0.15-0.60 | 0.15-0.60 | 0.75 | 19-23 | 30-35 |
| 800H | 0.05-0.1 | 39.5 min | 1.0 | 1.5 | 0.015 | 0.15-0.60 | 0.15-0.60 | 0.75 | 19-23 | 30-35 |
| 800HT | 0.06-0.1 | 39.5 min | 1.0 | 1.5 | 0.015 | 0.85-1.20 | 0.25-0.60 | 0.75 | 19-23 | 30-35 |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 800/800H/800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi - 30,000 , MPa - 205 | Psi - 75,000 , MPa -520 | 30 % |
Corrosion resistant
Durable functioning
Malleable
Heat resistance
High strength
Excellent conductivity
Impeccable finish
Enhanced service life
Precisely designed
