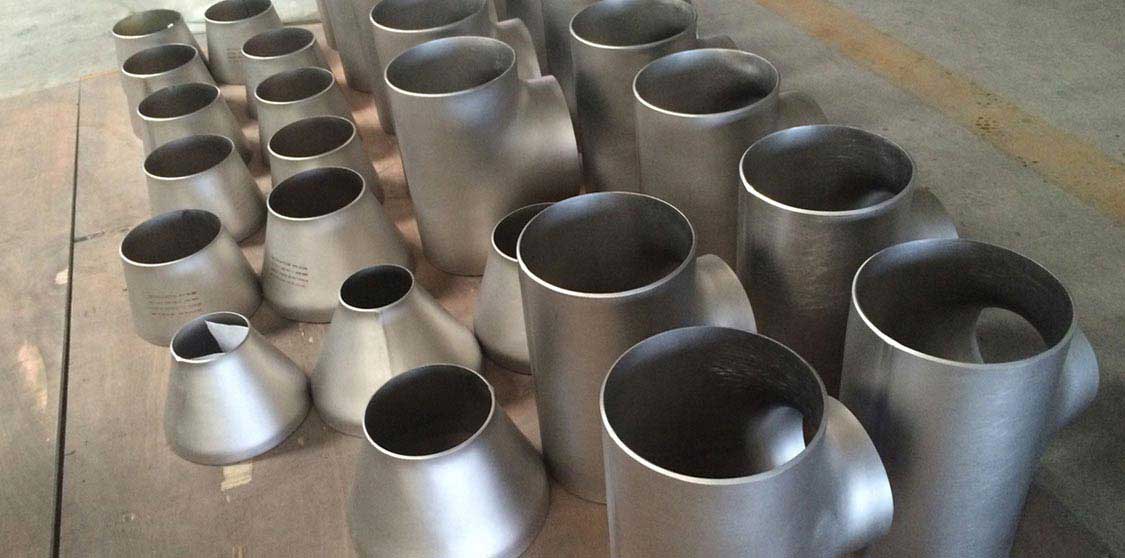

Hastelloy C22 Pipe Fittings is a nickel-molybdenum-chromium alloy with improved stress corrosion, pitting, and crevice corrosion resistance. These Hastelloy pipe fittings easily resist the structure of grain precipitates in weld-heat-affected areas, making them best for use in the as-welded form. These fittings have superior resistance to both reducing and oxidizing media. Best known for their exceptional features and the properties they bring to applications, these can withstand high temperatures and pressure without sustaining damage.
Max Steels is one of the reputed and renowned manufacturers of Hastelloy C22 Buttweld Pipe Fittings that manufacture and supply these fittings to their worldwide customers and clients at an affordable price. We manufacture these Hastelloy C22 Pipe Fittings using top-notch quality raw material that is first inspected before being delivered for manufacturing purposes. In addition to this, national and international specifications are used to make high-quality pipe fittings. The team of qualified professionals uses modern tools and machines to make accurate sizes and shapes of fittings.
Upon completion of these pipe fittings, testing and inspection are conducted to assess their quality and performance. The tests include a hardness test, flaring/ flattening test, visual inspection, third-party inspection, pitting resistance test, IBR test, and ultrasonic test. The entire testing process takes place under the supervision of inspection agencies. When all the tests are done, these Hastelloy C22 Seamless and Welded Fittings are packed in wooden boxes/ pallets or cartons that help prevent damage until the last production stage.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | - | NiCr21Mo14W | NW 6022 | - | - |
Specifications : ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Type : Seamless / Welded / Fabricated
Schedule : Sch 5 TO Sch XXS
Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc
ASME B16.9 - The ASME B16.9 specification covers the dimensions and the tolerances of stainless and alloy butt weld fittings.
ASME B16.28 - ASME B16.28 Standard covers ratings, overall dimensions, testing, tolerances, and markings for wrought carbon and alloy steel buttwelding short radius elbows and returns.
MSS-SP-43 - This Standard Practice covers only fittings made for use with Schedule 5S or 10S pipe, for all NPS sizes listed in ASME B36.19M, except that for short pattern stub ends suitable for use with Schedule 40S are also shown.
ASTM B366 - This specification covers the standard for wrought austenitic hastelloy fittings for pressure piping applications.
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
Corrosion resistant
Durable functioning
Malleable
Heat resistance
High strength
Excellent conductivity
Impeccable finish
Enhanced service life
Precisely designed
